    Maverick chelsea

    ABOUT

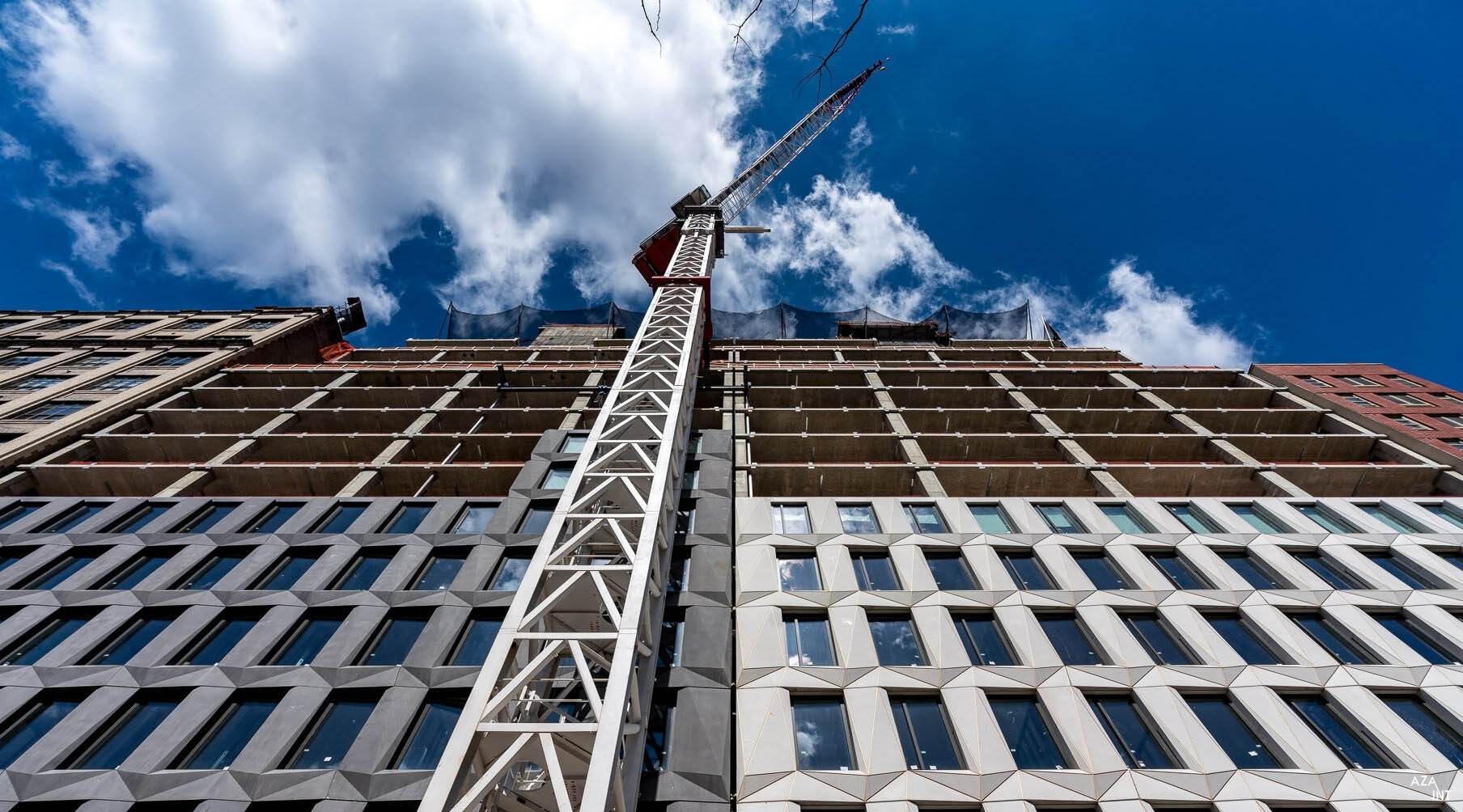

    Consisting of two adjoining 21-story residential buildings and now officially referred to as “Maverick Chelsea” by the investment firm, the 300,000 Sq Ft project will add 200 apartments to a relatively low-key block of the vibrant, appealing neighborhood of Chelsea, between Seventh and Eighth Avenues.
    The two buildings feature nearly identical masses and have vigorous, gridded facades.
    The slightly different gray tones of the two facades distinguish the two buildings, while respecting the unitary nature of the complex.
    HAP8 represents a further achievement for AZA INT, as it is the first project in which we are directly contracted by the GC.

    YEAR

    2017 – 2019

    ARCHITECT

    Dxa Studio Architecture, Pllc

    TYPE OF BUILDING

    Residential

    LINK

    Residential development in Chelsea

    215 West 28th Street consists of two buildings – one Rental and one Condo – designed by NYC’s DXA.
    The street front will host commercial spaces, while the buildings will be provided of a gym, swimming pool, yoga center, children’s playgrounds, and parking spots.
    Chelsea is an appealing Manhattan neighborhood rich in art galleries and restaurants.
    In the same neighborood, we realized Peter Marino’s “The Getty”.

    An achievement for AZA INT

    HAP8 is a further achievement for AZA INT, being the first job in which we are directly contracted by the GC (Rinaldi). It means that we provide full service to the client, also doing the installation.

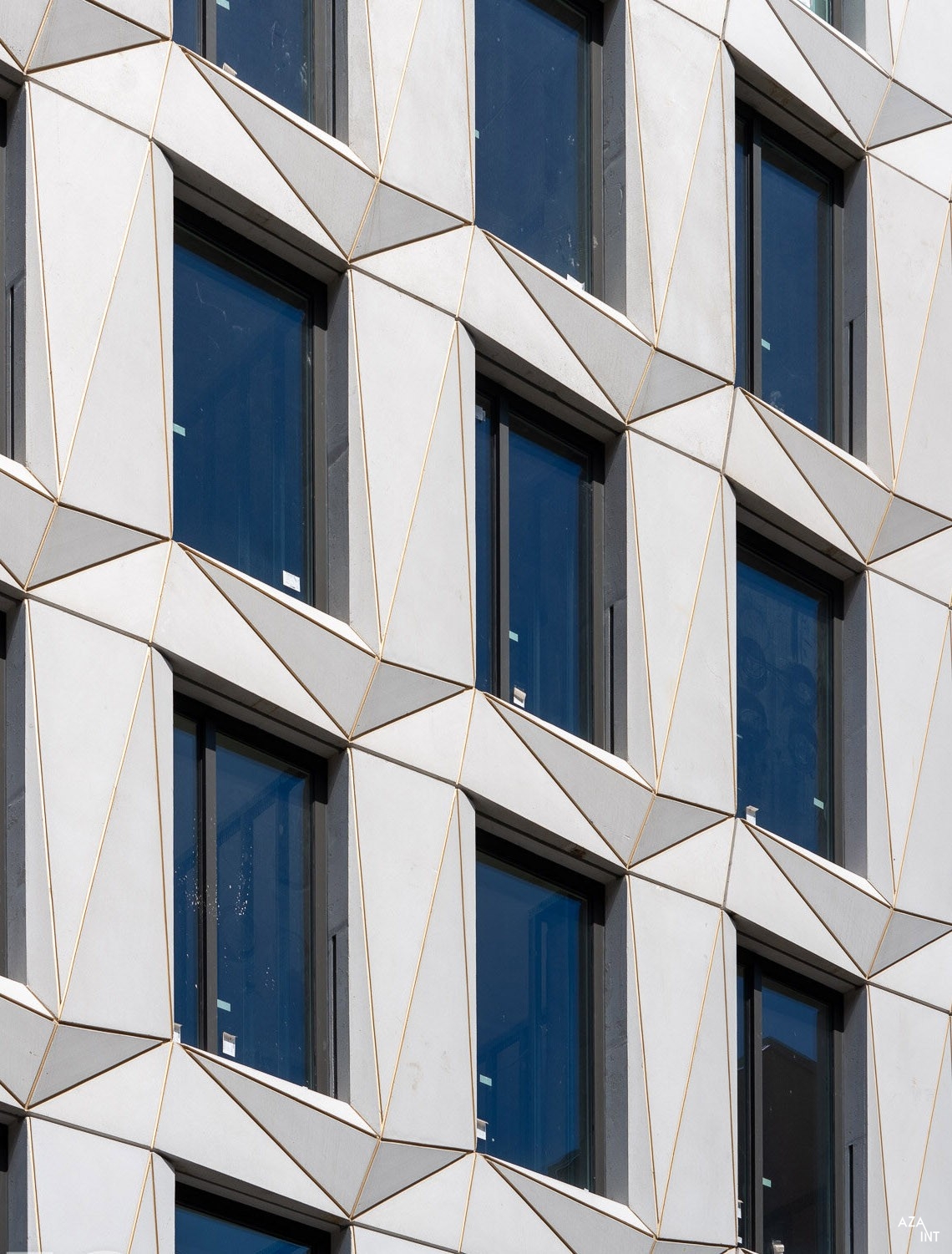

    HAP8’s gridded facade

    The gridded facades – consisting of custom-made window walls and punched windows – are designed with extruded sections that become narrower as they rise, conceived to capture varying degrees of light and shadow.

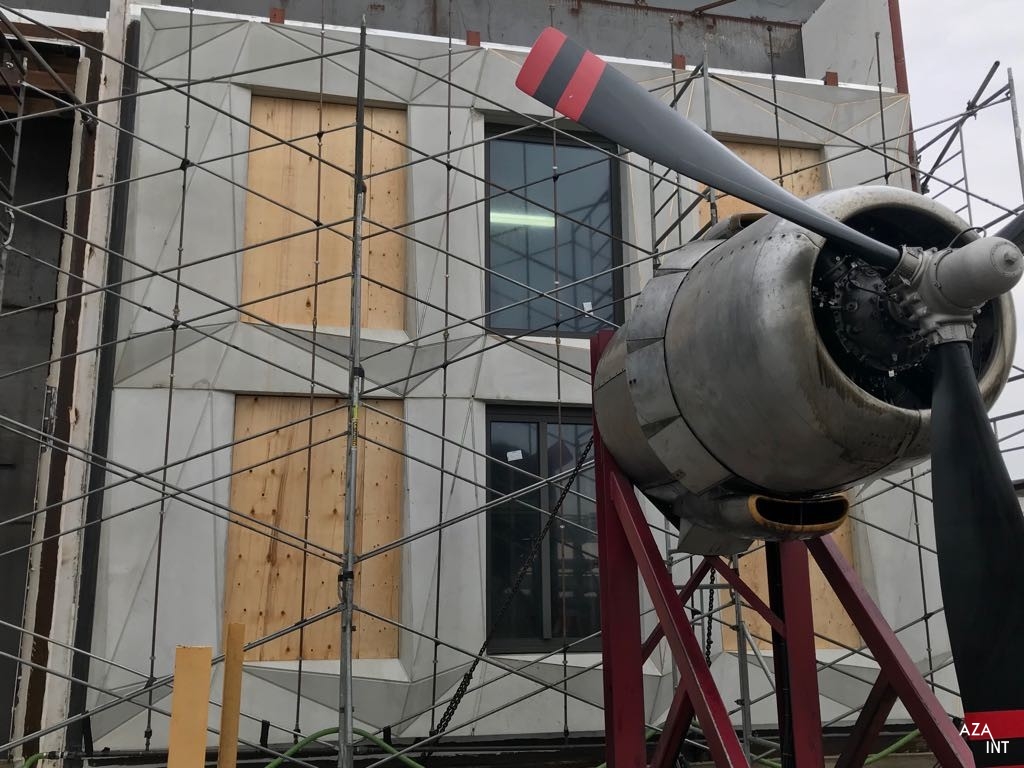

    Since the two buildings are built with pre-cast concrete panels, most of the windows will be shipped to the pre-fabricator (located in Canada), who will take care of mounting them directly into the panels.
    This procedure ensures two benefits:

    –    The performance controls can be done in the factory

    –    On-site installation times are considerably reduced.

    Many of the apartments will have inset Juliet balconies designed, engineered, and (partially) installed by AZA INT, as well as punched windows and window walls, glass railings, and two stick system facades.



    Location 215 West 28th Street, New York
    Data 2 Buildings
    20 Floors + 20 Floors
    Developer Hap Investments, Llc
    CM/General Contractor Hap Constructions, Llc
    Glazing Contractor AZA INT Corporation
    Facade Consultant FSA – Frank Seta & Associates
    Scope Design, Engineering, Fabrication, and Installation (partial) of #844 Punched Windows and Window Walls + Juliet Balcony + Glass Railings + #2 Stick System Facades
    Challenges Coordination with other trades (i.e.: precast) for the assembly of the windows in the precaster facility in order to minimize work on site and maximize quality control
